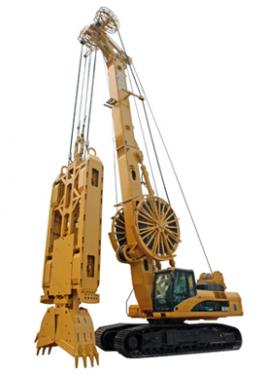

SG40E

SG series hydraulic diaphragm wall grabs are specialized equipment to form diaphragm walls, such as for pit strutting, dam anti-seepage and dock cofferdam, and are also used for the construction of square piles, remaining kind of highly efficient, multifunctional infrastructure construction machinery.

Model of base carrier	SG40E
Wall width(m)	0.35－1.2
Wall depth(m)	70
Max. extraction force(kN)	400
Single line pull of winch(kN)	2×200
Rated engine output(kw)	261
System pressure(Mpa)	30
Main pump flow(L/min)	2×280
Diesel	Caterpillar C-9
Max. rotation speed(rpm)	1800
Model of undercarriage	CAT330D TC325VH
Track shoe outer distance(mm)	3000-4300
Track shoes width(mm)	800
Towing force(kn)	500
Crawler speed(kn/h)	1.5
Total weight(w/o grab)(t)	62.5
